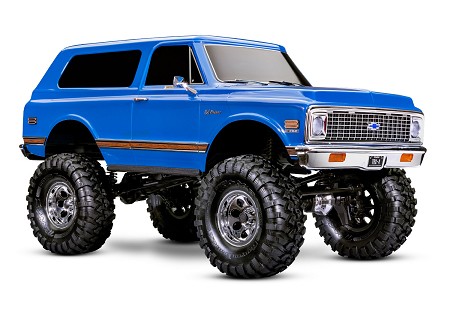

TRX-4® Chevrolet® K5 Blazer High Trail Edition

Battery & Charger Sold Separately!

Traxxas High Trail Edition™ TRX-4® models are the biggest and baddest trucks on the trail and now classic Blazer fans have reason to celebrate. The 1972 Chevrolet® K5 Blazer gets the full High Trail treatment with a big, lifted stance and beautifully detailed body. The factory-installed Long Arm Lift Kit boosts the Blazer’s ground clearance by more than an inch with larger 2.2? wheels and tires to conquer the roughest terrain. K5 Blazer High Trail Edition delivers more of what you crave—extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.Features:

• Officially Licensed 1972 Chevrolet® K5 Blazer Body
• Clipless Body mounting for smooth body appearance. Body details mount directly to the frame.
• Trail-tuned XL-5™ HV Waterproof Electronic Speed Control with 5 drive profiles:
  Sport Mode — forward / brake / reverse
  Race Mode — forward / brake / no reverse
  Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Powerful Titan® 21T reverse rotation motor with internal cooling fan
• Factory-Installed Long Arm Lift Kit that increases ground clearance over 1"
• Steel Ladder Frame
• Full-time shaft driven 4-wheel drive drivetrain
• Innovative Battery Compartment
• Two speed high/low range transmission with remote shifting
• Extended Aluminum GTS Shocks - Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Oversize Wheels and Tires
• TQi™ 2.4GHz 4-channel, Traxxas Link enabled transmitter
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

Specifications:

• Length: 20.67 inches (525mm)
• Front Track: 10.63 inches (270mm)
• Rear Track: 10.63 inches (270mm)
• Center Ground Clearance: 4 inches (99mm)
• Weight (w/o battery): 7.26lbs (3.30kg)
• Height (overall): 11.22 inches (285mm)
• Wheelbase: 12.28 inches (312mm)
• Approach Angle: 69.2°
• Departure Angle: 55.7°
• Breakover Angle: 79.3°
• Front Shock Length: 4.33 inches (110mm)
• Rear Shock Length: 4.33 inches (110mm)
• Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
• Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
• Front Tires: 5.3 x 2.14 inches (135 x 54mm)
• Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
• Hex Size: 12mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: 2-speed High/Low, Remote Shifting
• Gear Pitch: 32P
• Differential Type: 4 Gear, Remote Locking
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 1
• Battery Tray: 158.75 L x 47 W x 23/26mm H

What's in the Box:

• TRX-4, Ready-To-Race® model
• XL-5 HV waterproof electronic speed control
• Titan® 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

What You'll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
• Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971)
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
