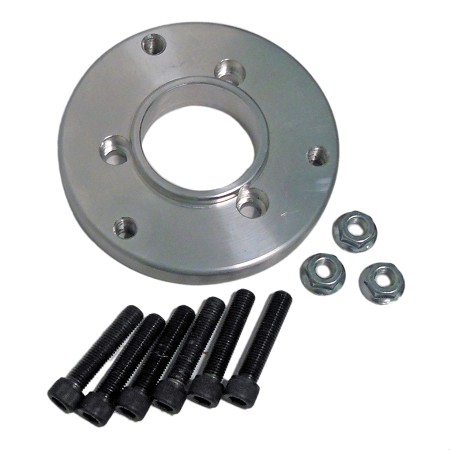

Conversion Wheel Hub Adapter
Conversion Wheel Hub Adapter

Conversion Wheel Hub Adapter
For 3-Bolt Chinese Rims with 90mm Bolt Circle

Part Number:K447750 or K447751
Availability:In Stock
review
7 Review(s)
5/5 stars
Your Price: $17.95

Choose Options

Wheel Hub Bolt Pattern

Product Specs:

  • Brand: BMI Karts
  • Material: Aluminum
  • Bolt Pattern to Chinese Rim: (3) 5/16-24 Threaded Bolt Holes on a 90mm (3.54") Bolt Circle
  • Bolt to Bolt Measurement: 3.07" (78mm)
  • Outside Diameter: 4.2"
  • Includes Bolts and Nuts
Bolt Circle Option for Wheel Hub
  • (3) 5/16" Holes on a 2-1/2" Bolt Circle (American Racing Wheel Hub Pattern)
  • (3) 8mm Holes on a 58mm Bolt Circle (Metric Racing Wheel Hub Pattern)
Features:
  • This part can be interchangeable with many ATVs, Quads, or Go Karts from manufactures including TaoTao, Coolster, Sunl, Kandi, Lynx Models. Please check with the manufacture to see if this part will fit your model.
  • Chinese commonly use a 145/70-6 Tire with Rim with a 3-bolt pattern, similar to below. This wheel hub adapter allows you to utilizes this tire and rim combo with our racing wheel hubs. Giving you the option to use this tire and rim with standard 5/8" spindles or 3/4", 1" or 1-1/4" live axles. Note: To use this on a 1/2" or 3/4" spindle, only requires a bearing change in the hub.
