Bully Turbo Jackshaft Clutch Parts (4 Disc, 6 Spring)

Bully Turbo Jackshaft Clutch Parts (4 Disc, 6 Spring)

Part Number:098-4D6S-JACK
Availability:In Stock
Location: ;
review
0/5 stars
Your Price: $0.00

Choose Options

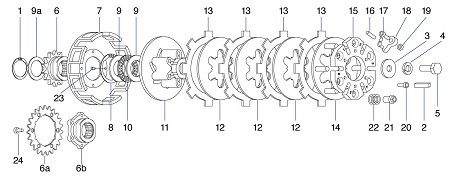

Parts List

Replacement parts for the Bully / Buller Turbo Jackshaft Clutch (4 Disc / 6 Spring)

Parts List:

1. 7/8'' Snap Ring (098-007)
2. Key (098-021)
3. Retaining Bolt (098-008)
4. Split Lock Washer (098-009)
5. Aluminum Washer (098-015)
6b. Ring Gear Hub (098-401)
6b. Replacement Bearing (098-035)
7. 4 Disc Steel Drum (098-305)
8. Retaining Ring - New Style Sprocket (098-028)
9. Thick (.030'') Inner Thrust Washer (098-112)
9. Thin (.015'') Inner Thrust Washer (098-113)
10. Thrust Bearing (098-110)
11. Turbo Vented Drive Hub (098-347)
12. Floater Disc (.100'') (098-111)
13. Slotted Floater Disc (098-248S)
14. Turbo Pressure Plate (098-250T)
15. Turbo Activator Plate (098-260T)
16. Dowel Pin (098-001)
17. Weight Bolt (098-004)
18. Straight Ball Lever (098-105B)
19. Weight Nut (098-005)
20. Plate Bolt (098-606)
21. Spring Retainer (10-32) (098-118)
22. Purple Spring (.067) (098-067)
23. Retaining Screw (ZN-93724)
24. Gear Ring Retaining Bolt (098-606)
