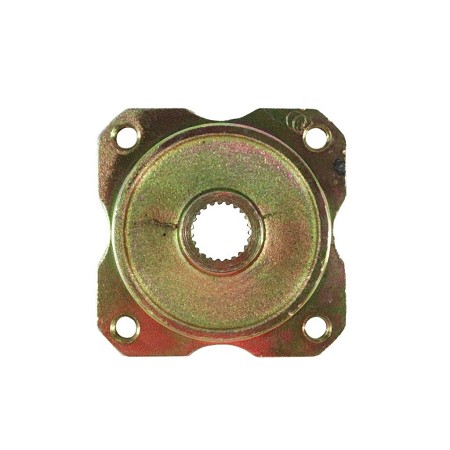

This rear wheel hub is used on several makes & models of Chinese
ATVs. The best way to insure you are ordering the correct part is to use
our detail pictures and measurements. Please be sure to check both
before ordering.
Hub Details:
- Metric Rear Hub Kit
- Axle Size / Bore: 23 Spline
- Threaded Bolt Holes: (4) M10 x 1.50
- Bolt Pattern: (4) M10-1.50 Bolts on a 110mm Bolt Circle
- Bolt to Bolt Measurement: 78mm (3.07")
- Compatible with the following axle: 5000-AX001-14
Compatibility:
- Most Tao Motor models prior to 2020 will use a 23 spline hub. Late model
units, or if you have changed the axle, may use the 24 spline hub.
Double check before ordering.
- Taotao ATA125E, ATA125F1, ATA125G, ATA125H, ATA125L, 125 Sport
Utility, ATA150B, ATA150D, ATA150G, Bull 150, Bull 200, Cheetah, NEW
CHEETAH, NEW TFORCE, RAPTOR, Rival MudHawk, Targa 150, Targa 200,
TForce, Tonga 150, ATA250D, Rhino 250 ATVs
- Taotao ARROW 150, ATK4150 & 4Fun Go-karts
- Coleman BK200 Go-Kart
Be sure to check your hub measurements with the above measurements to be sure you are getting the correct part.
