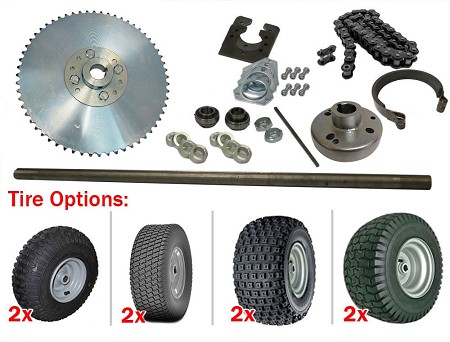

1" Live Axle Kit - Complete (#40 Chain)
1' Live Axle Kit - Complete (#40 Chain)

1" Live Axle Kit - Complete (#40 Chain)
Multiple Tire Options (Turf or Knobby)

Part Number:566430
Availability:In Stock
review
5 Review(s)
5/5 stars
Your Price: $319.95

Choose Options

Axle Length
Tire Option
Brake Style
1" Live Go Kart Axle Kit - Complete (#40 Chain)
  • This is a complete rear live axle kit. Kit includes everything you need to change out a 1" live axle. Perfect for DIY go kart projects or rebuilds.
  • Axle, Wheels, Tires, Brake, Sprocket... and more!

Tire Option:

  • Knobby or Turf tires, specifics are listed below.

Brake Option:

  • Band Brake, Mechanical Disc Brake, or Hydraulic Disc Brake, specifics are listed below.

    Engine compatibility:

    • We recommend 6.5HP - 13HP engines for this kit, select the appropriate torque converter for engine size
    Note:
    • The axle nuts and keystock may not appear on your invoice, but they are included in the kit. This is simply a result of how our system assembles kit electronically to account for different axle lengths. Rest assured, all necessary components will be provided.

    Kit Includes:

    Part SKUQuantityItem Name
    4000**11" Axle
    4000502Axle Nut
    AZ840311/4 x 1/4 x 12" Key Stock
    60001081 Piece Steel Lock Collar - 1'' Bore
    4001702Bearing Hanger
    4001652Bearing Flangettes Set
    UC205-162Axle Bearing (1" Bore)
    KD60LAS or 2300011001#41/420 Sprocket 60T with 1" BoreDependent on in stock availability
    4006404#40 Chain by the Foot
    4016401#40 Master Link




    TIRE OPTIONS
    Knobby Tire


    260016S2145/70-6 Kenda Knobby Tire
    260065G26" x 4-1/2" Rear Rim (1" Bore)
    Large Knobby Tire

    		Additional Cost
    260032S218 x 9.50-8 Knobby Tire (Kenda)
    26008128" x 7" Rim (1" Bore)
    Turf Tire


    MWC_606-4TMX-I215 x 6.00-6 K505X Turf Tire
    260065G26" x 4-1/2" Rear Rim (1" Bore)
    Large Turf Tire

    		Additional Cost
    260111218 x 9.50-8 Turf Tire
    26008128" x 7" Rim (1" Bore)




    BRAKE OPTIONS
    Brake Band Option


    40025914" Brake Drum (1" Bore)
    40025014.2" Brake Band with Pin
    Mechanical Disc Brake Option

    		Additional Cost
    AZ182716" Brake Rotor with Hub (1" Bore)
    4002811Mechanical Brake Caliper
    4002881Brake Caliper Bracket
    Billet Alum Mechanical Disc Brake Option

    		Additional Cost
    AZ182716" Brake Rotor with Hub (1" Bore)
    6776401Billet Alum. Mechanical Brake Caliper
    4002881Brake Caliper Bracket
    Hydraulic Brake Option

    		Additional Cost
    K6055171Hydraulic Brake Kit for a 1" Axle


    		Caliper & Master Cylinder


    		Caliper Mounting Bracket


    		8" Brake Rotor with Hub
