1" Live Axle Kit - Complete (#35 Chain)
1' Live Axle Kit - Complete (#35 Chain)

1" Live Axle Kit - Complete (#35 Chain)
Multiple Tire Options (Turf or Knobby)

Part Number:566435
Availability:In Stock
review
3 Review(s)
5/5 stars
Your Price: $309.95

Choose Options

Axle Length
Tire Option
Brake Style

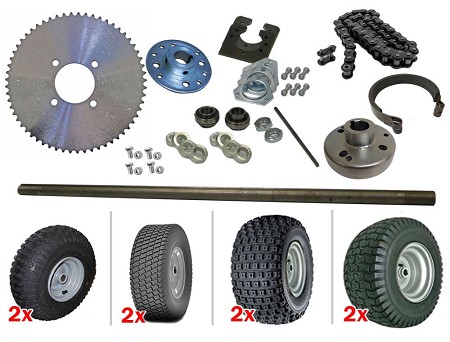

1" Live Go Kart Axle Kit - Complete (#35 Chain)
  • This is a complete rear live axle kit. Kit includes everything you need to change out a 1" live axle. Perfect for DIY go kart projects or rebuilds.
  • Axle, Wheels, Tires, Brake, Sprocket... and more!

Tire Option:

  • Knobby or Turf tires, specifics are listed below.

Brake Option:

  • Band Brake, Mechanical Disc Brake, or Hydraulic Disc Brake, specifics are listed below.

Engine compatibility:

  • We recommend 6.5HP - 13HP engines for this kit, select the appropriate torque converter for engine size
Note:
  • The axle nuts and keystock may not appear on your invoice, but they are included in the kit. This is simply a result of how our system assembles kit electronically to account for different axle lengths. Rest assured, all necessary components will be provided.

Kit Includes:

Part SKUQuantityItem Name
4000**11" Axle
4000502Axle Nut
AZ840311/4 x 1/4 x 12" Key Stock
60001081 Piece Steel Lock Collar - 1'' Bore
4001652Bearing Flangettes Set
4001702Bearing Hanger
UC205-162Axle Bearing (1" Bore)
RT_4701#35 Sprocket 72T with 2-7/8" Bolt Pattern
AZ25611Steel Sprocket Hub (1" Bore)
4006354#35 Chain by the Foot
4016351#35 Master Link




TIRE OPTIONS
Knobby Tire


260016S2145/70-6 Kenda Knobby Tire
260065G26" x 4-1/2" Rear Rim (1" Bore)
Large Knobby Tire

Additional Cost
260032S218 x 9.50-8 Knobby Tire (Kenda)
26008128" x 7" Rim (1" Bore)
Turf Tire


MWC_606-4TMX-I215 x 6.00-6 K505X Turf Tire
260065G26" x 4-1/2" Rear Rim (1" Bore)
Large Turf Tire

Additional Cost
260111218 x 9.50-8 Turf Tire
26008128" x 7" Rim (1" Bore)




BRAKE OPTIONS
Brake Band Option


40025914" Brake Drum (1" Bore)
40025014.2" Brake Band with Pin
Mechanical Disc Brake Option

Additional Cost
AZ182716" Brake Rotor with Hub (1" Bore)
4002811Mechanical Brake Caliper
4002881Brake Caliper Bracket
Billet Alum Mechanical Disc Brake Option

Additional Cost
AZ182716" Brake Rotor with Hub (1" Bore)
6776401Billet Alum. Mechanical Brake Caliper
4002881Brake Caliper Bracket
Hydraulic Brake Option

Additional Cost

K6055171Hydraulic Brake Kit for a 1" Axle

1Caliper & Master Cylinder

1Caliper Mount

18" Brake Rotor with Hub
